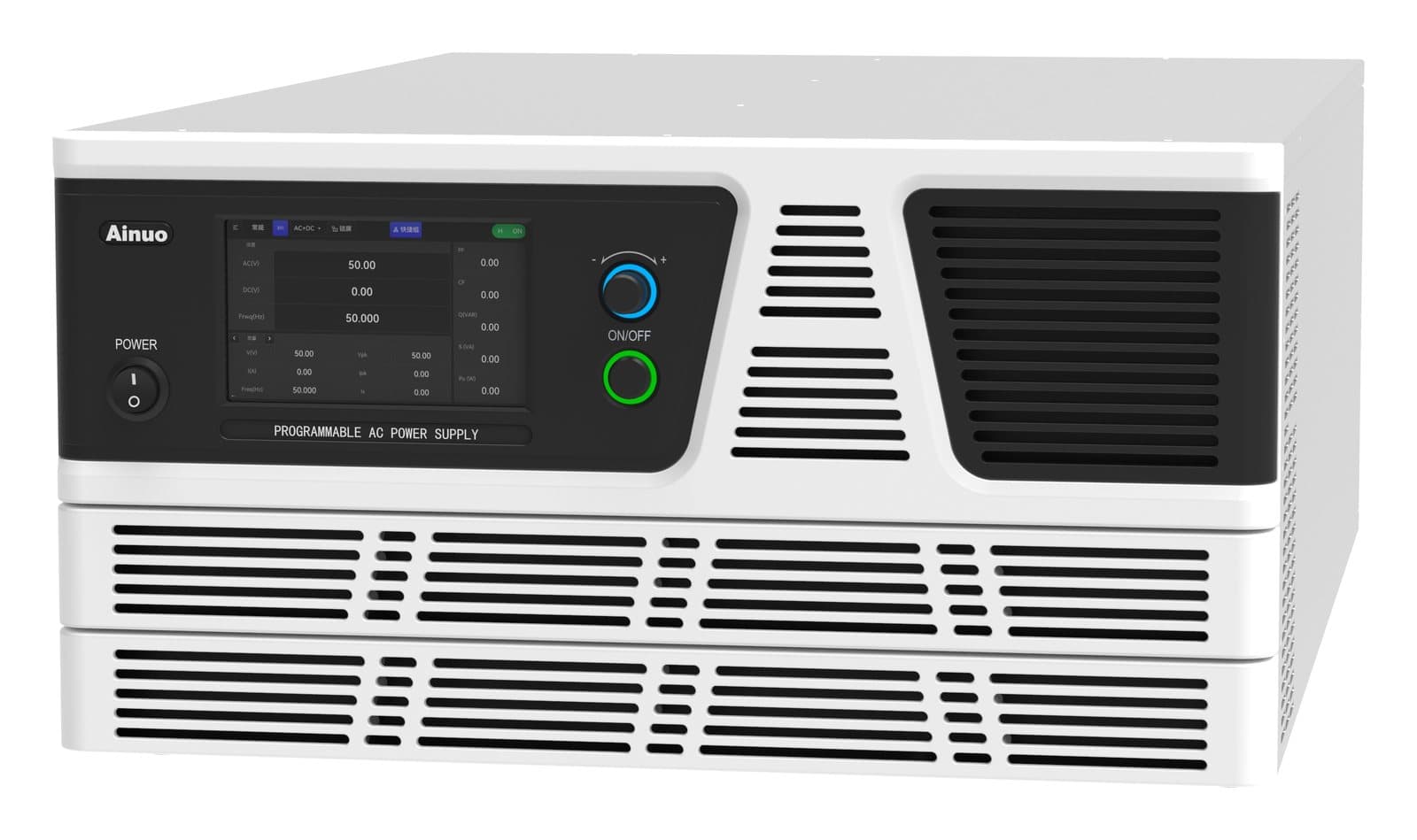

AN61(F) programmable AC test power supply
Supplied and integratedA programmable AC source family that runs from a bench unit to a cabinet, with the pulse, step, sequence and harmonic modes that immunity testing to IEC 61000-4 asks for.
- Envelope
- 500 VA – 120 kVA · 0–350 V · 15–1000 Hz (615/618) or 30–100 Hz (619) · AC, DC and AC+DC · 31 models
- Manufactured by
- Ainuo
- Family
- AN61
- Availability in the UK
- Supplied and integrated
Why it matters here
The reason to specify this family for a British test department is the BS EN 61000-4 immunity work: dips, interruptions and variations to -4-11, harmonics and interharmonics to -4-13, and frequency variation to -4-28 are all modes on the front panel rather than an external arbitrary generator and an amplifier. The 3–4 times peak current is what makes the surge-current measurement on a switched-mode supply honest, because the source is not the thing that limits the inrush.
Get a figure against your requirement
Tell us the standard you are assessed against and the device under test. That is enough for an engineer to answer usefully rather than send a brochure.
