Equipment · AC sources and frequency converters

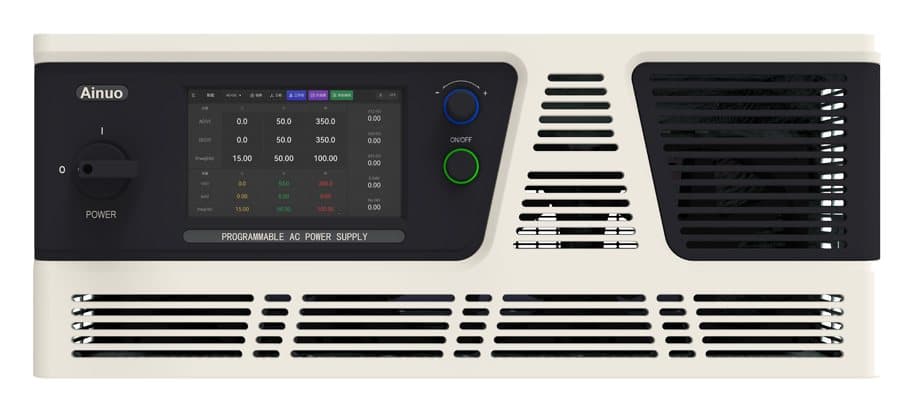

ANRGS(F) regenerative AC and DC source
Supplied and integratedA regenerative source that produces AC or DC from the same chassis across a wide frequency range.
- Envelope
- 3 kVA – 120 kVA · 0–350 V AC and −495 to +495 V DC · 30–100 Hz · single and three-phase · 21 models
- Manufactured by
- Ainuo
- Family
- ANRGS
- Availability in the UK
- Supplied and integrated
Why it matters here
The AC-or-DC-from-one-chassis arrangement suits a bench that has to cover both a grid-connection programme and DC bus work without buying twice. The 30–100 Hz span reaches well outside the 50 Hz British norm, which is what off-nominal frequency testing actually requires.
Standards this line is bought for
Get a figure against your requirement
Tell us the standard you are assessed against and the device under test. That is enough for an engineer to answer usefully rather than send a brochure.
